Max Est. MMI
0 km NE of Angwin, CA
Ground Shaking Intensities — Interpolated ShakeMap MMI
3 sites| Location | MMI Description |
|---|---|
|
Angwin
CA |
Weak(III) |
|
Deer Park
CA |
Weak(III) |
|
Saint Helena
CA |
Weak(III) |
Seismic Station Observed MMI
MMI values are derived directly from observed ground motion measurements at seismic stations and are not spatially interpolated.
| Station | MMI Description |
|---|---|
| Weeks Lake (NC.NWS) | Weak(III) |
| St. Helena Fire Department (NP.1764) | Weak(III) |
| Moore Creek Park, Napa County (BK.MORK) | Weak(III) |
Engineering Ground Motion Parameters
GMPE predictions provide an independent check on the ShakeMap interpolated intensities above.
ShakeMap relies on seismic station recordings; in areas with sparse station coverage — or
for large teleseismic events and earthquakes outside dense West Coast networks — ShakeMap
MMI can be inaccurate. A significant difference between ShakeMap and GMPE estimates is a signal
that the ShakeMap result should be treated as preliminary.
Also includes site Vs30 values and raw ground motion parameters (PGA/PGV).
Show ▼
Engineering Ground Motion Parameters
GMPE predictions provide an independent check on the ShakeMap interpolated intensities above. ShakeMap relies on seismic station recordings; in areas with sparse station coverage — or for large teleseismic events and earthquakes outside dense West Coast networks — ShakeMap MMI can be inaccurate. A significant difference between ShakeMap and GMPE estimates is a signal that the ShakeMap result should be treated as preliminary. Also includes site Vs30 values and raw ground motion parameters (PGA/PGV).
Est. Vs30 Values
Estimated shear-wave velocity in the upper 30 m used in GMPE calculations. Ref. column shows the 760 m/s rock-site reference for comparison.
| Location | Ref. (760 m/s) | Est. Vs30 (m/s) |
|---|---|---|
|
Angwin
CA |
760 | 519 |
|
Deer Park
CA |
760 | 519 |
|
Saint Helena
CA |
760 | 294 |

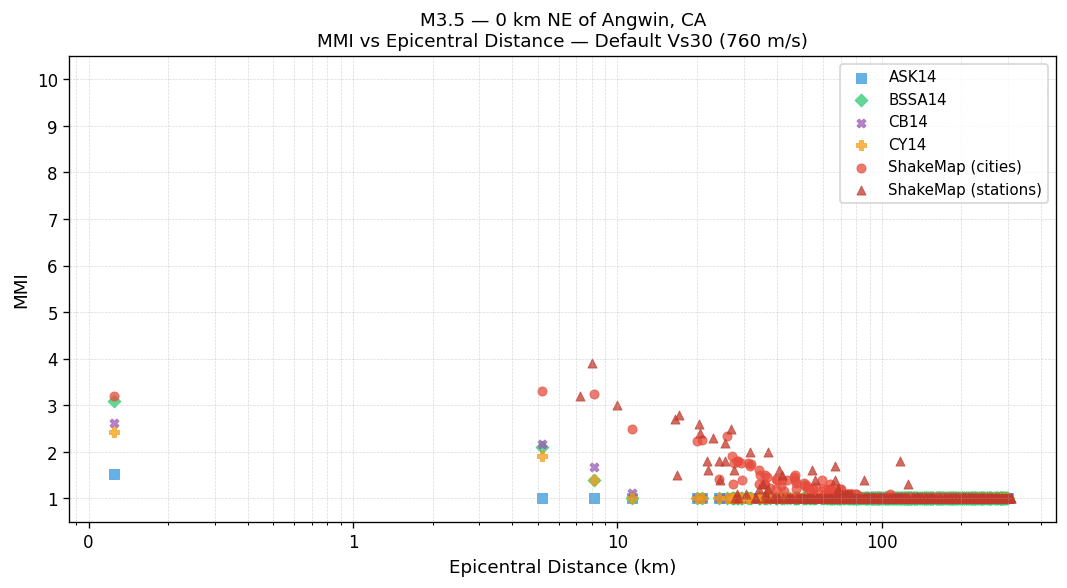

MMI vs Distance — Default Vs30 (760 m/s)
All methods using the 760 m/s rock-site reference. ShakeMap values are independent of Vs30.

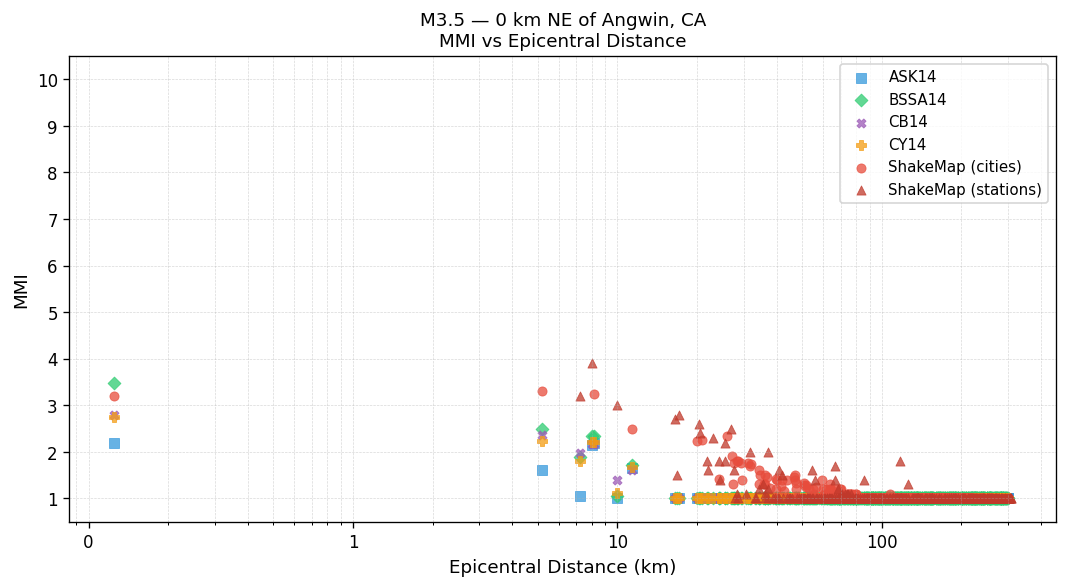

MMI vs Distance — Est. Vs30
GMPEs use the Est. Vs30 values shown in the table above. ShakeMap values are independent of Vs30.

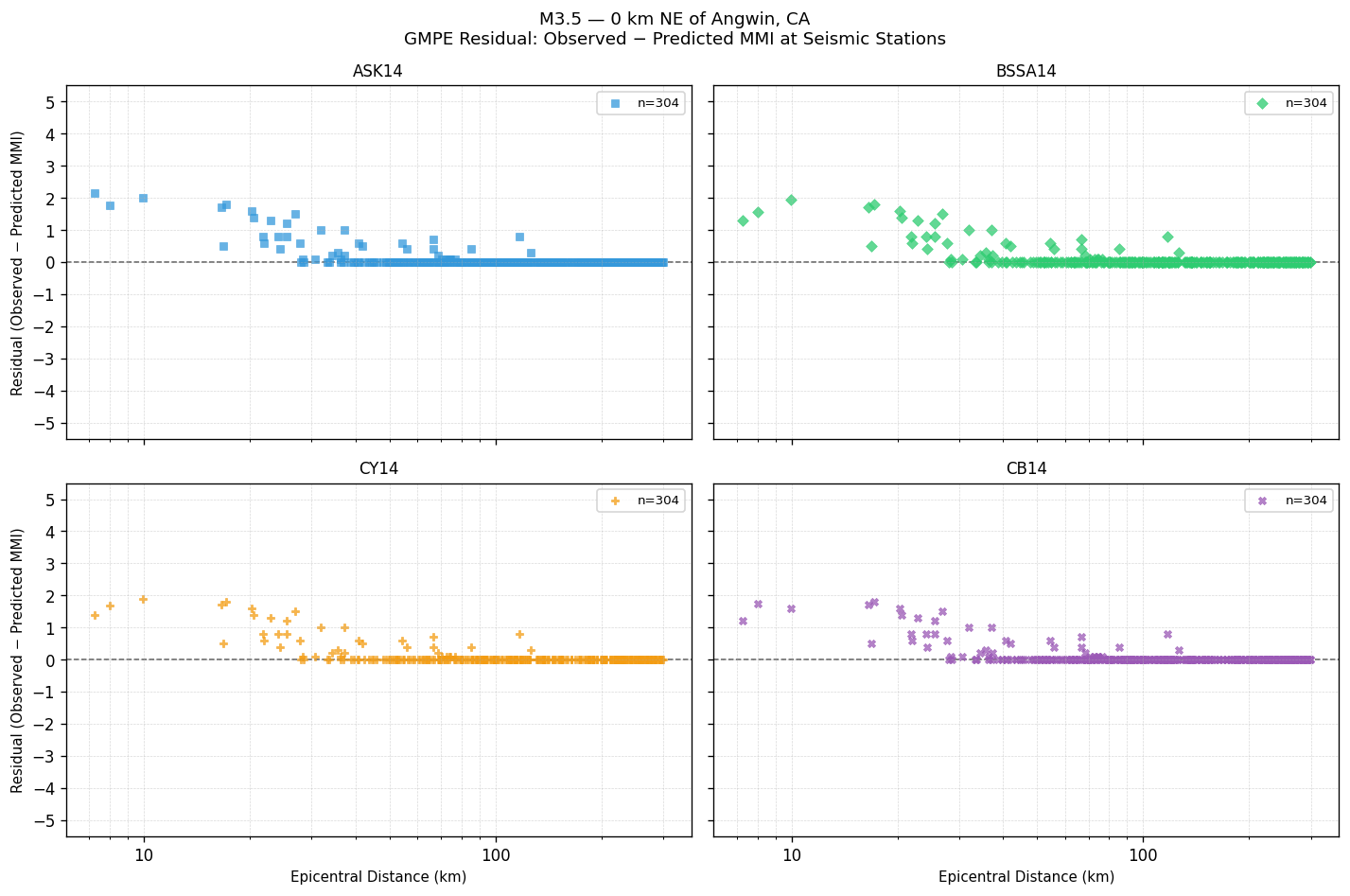

GMPE Residual — Observed − Predicted MMI
Signed residual at each seismic station. Positive values mean the GMPE underestimated shaking; negative values mean it overestimated. The dashed line at zero indicates perfect agreement.

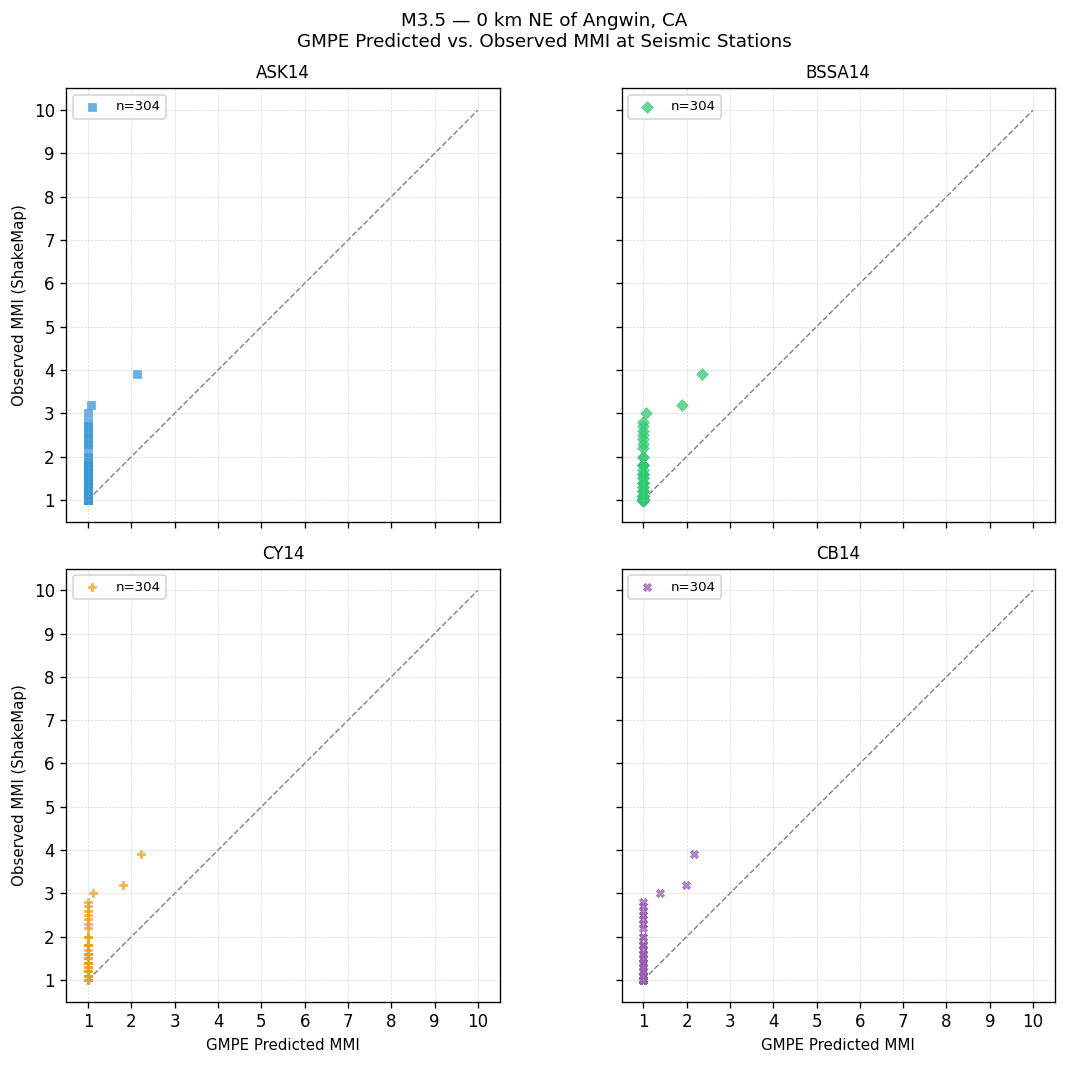

GMPE Predicted vs. Observed MMI at Seismic Stations
Each point is one seismic station. Points on the dashed 1:1 line indicate perfect agreement; above the line = GMPE underestimated shaking; below = overestimated.
GMPE Performance — Station Observations
Statistics computed by comparing each GMPE's predicted MMI against ShakeMap observed MMI at seismic stations. Bias = mean(observed − predicted). Lower RMSE indicates better overall agreement with instrumental measurements.
| GMPE | Bias | Sigma | RMSE |
|---|---|---|---|
| ASK14 | +0.10 | 0.33 | 0.34 |
| BSSA14 | +0.09 | 0.31 | 0.32 |
| CY14 | +0.09 | 0.31 | 0.33 |
| CB14 | +0.09 | 0.31 | 0.32 |
Peak Ground Motion — Seismic Station Observations
Recorded PGA and PGV at seismic stations, sorted by highest PGA. Top 25 stations shown. MMI (PGA) and MMI (PGV) are independent conversions via Worden et al. (2012) GMICE.
| Station | PGA (g) | MMI (PGA) | PGV (cm/s) | MMI (PGV) |
|---|---|---|---|---|
| St. Helena Fire Department (NP.1764) | 0.0148 | Weak(II) | 0.815 | Light(IV) |
| Weeks Lake (NC.NWS) | 0.0132 | Weak(II) | 0.275 | Weak(III) |
| Moore Creek Park, Napa County (BK.MORK) | 0.0085 | Weak(II) | 0.191 | Weak(II) |
| Smittle Creek (NC.NSC) | 0.0049 | Not felt(I) | 0.139 | Weak(II) |
| Santa Rosa FS 7 (NP.1835) | 0.0038 | Not felt(I) | 0.114 | Weak(II) |
| Oakville Experimental Vineyard, Oakville, CA (BK.OAKV) | 0.0030 | Not felt(I) | 0.130 | Weak(II) |
| Lake Bordeaux (NC.NLB) | 0.0030 | Not felt(I) | 0.074 | Weak(II) |
| Middletown (NC.NMTB) | 0.0016 | Not felt(I) | 0.040 | Not felt(I) |
| Santa Rosa FS 1 (NP.1767) | 0.0013 | Not felt(I) | 0.094 | Weak(II) |
| Archer Taylor Preserve (BK.ATP) | 0.0013 | Not felt(I) | 0.060 | Weak(II) |
| Atlas Peak (NC.NAPC) | 0.0012 | Not felt(I) | 0.064 | Weak(II) |
| Adams Ridge, Knoxville, Napa County (BK.ADAM) | 0.0011 | Not felt(I) | 0.037 | Not felt(I) |
| Sonoma FS 1 (NP.1829) | 0.0010 | Not felt(I) | 0.048 | Not felt(I) |
| Geysers (NC.GDXB) | 0.0009 | Not felt(I) | 0.014 | Not felt(I) |
| Olema #3 (NC.NOLB) | 0.0009 | Not felt(I) | 0.036 | Not felt(I) |
| Glen Ellen FS Arnold (NP.1848) | 0.0009 | Not felt(I) | 0.037 | Not felt(I) |
| Pepperwood Preserve (BK.PWOD) | 0.0009 | Not felt(I) | 0.030 | Not felt(I) |
| Thermalito Afterbay Dam (WR.THER) | 0.0009 | Not felt(I) | 0.009 | Not felt(I) |
| Bald Mountain (NC.NBM) | 0.0007 | Not felt(I) | 0.047 | Not felt(I) |
| Lloyd Lowery (NC.NLL) | 0.0006 | Not felt(I) | 0.020 | Not felt(I) |
| The Novato Fire Protection District "Fire Station 1" (NP.1762) | 0.0006 | Not felt(I) | 0.030 | Not felt(I) |
| Alexander Valley (NC.GAXB) | 0.0006 | Not felt(I) | 0.019 | Not felt(I) |
| Berryessa Peak (NC.NBPB) | 0.0006 | Not felt(I) | 0.024 | Not felt(I) |
| Sears Point #3 (NC.NSP) | 0.0006 | Not felt(I) | 0.027 | Not felt(I) |
| Mill Valley Golf Course (NP.1806) | 0.0006 | Not felt(I) | 0.018 | Not felt(I) |
