Max Est. MMI
77 km NE of Tonopah, Nevada
Ground Shaking Intensities — Interpolated ShakeMap MMI
3 sites| Location | MMI Description |
|---|---|
|
Tonopah
NV |
Not felt(I) |
|
Goldfield
NV |
Not felt(I) |
|
Eureka
NV |
Not felt(I) |
Seismic Station Observed MMI
MMI values are derived directly from observed ground motion measurements at seismic stations and are not spatially interpolated.
| Station | MMI Description |
|---|---|
| Troy Canyon, Currant, NV, USA (NN.R11B) | Not felt(I) |
| Outlaw Springs Mine, Nye County, NV, USA (NN.OUT1) | Not felt(I) |
| Black Rock Springs, NV, USA (NN.BRS2) | Not felt(I) |
Engineering Ground Motion Parameters
GMPE predictions provide an independent check on the ShakeMap interpolated intensities above.
ShakeMap relies on seismic station recordings; in areas with sparse station coverage — or
for large teleseismic events and earthquakes outside dense West Coast networks — ShakeMap
MMI can be inaccurate. A significant difference between ShakeMap and GMPE estimates is a signal
that the ShakeMap result should be treated as preliminary.
Also includes site Vs30 values and raw ground motion parameters (PGA/PGV).
Show ▼
Engineering Ground Motion Parameters
GMPE predictions provide an independent check on the ShakeMap interpolated intensities above. ShakeMap relies on seismic station recordings; in areas with sparse station coverage — or for large teleseismic events and earthquakes outside dense West Coast networks — ShakeMap MMI can be inaccurate. A significant difference between ShakeMap and GMPE estimates is a signal that the ShakeMap result should be treated as preliminary. Also includes site Vs30 values and raw ground motion parameters (PGA/PGV).
Est. Vs30 Values
Estimated shear-wave velocity in the upper 30 m used in GMPE calculations. Ref. column shows the 760 m/s rock-site reference for comparison.
| Location | Ref. (760 m/s) | Est. Vs30 (m/s) |
|---|---|---|
|
Tonopah
NV |
760 | 544 |
|
Goldfield
NV |
760 | 433 |
|
Eureka
NV |
760 | 563 |

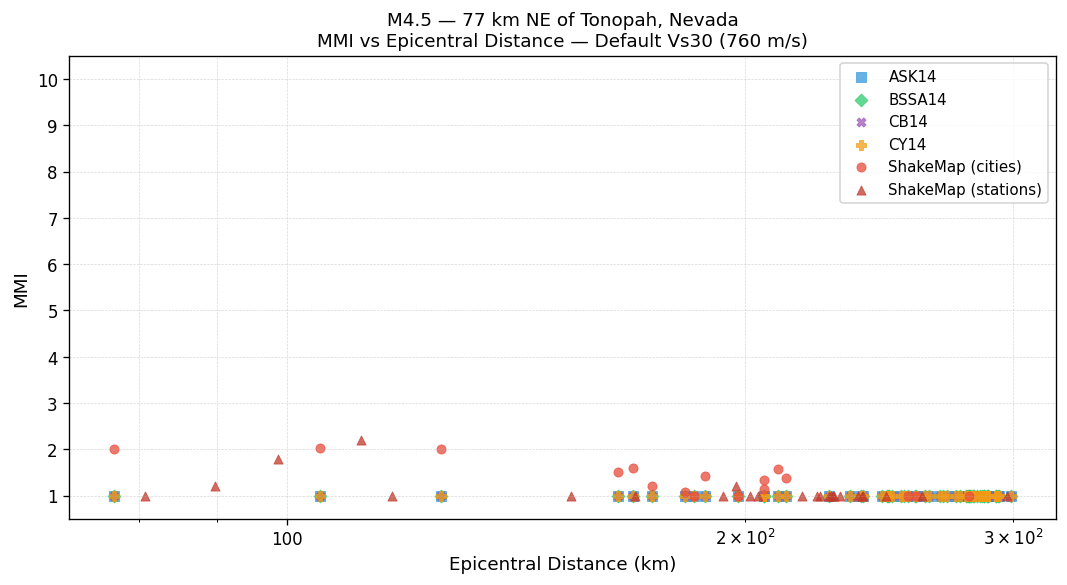

MMI vs Distance — Default Vs30 (760 m/s)
All methods using the 760 m/s rock-site reference. ShakeMap values are independent of Vs30.

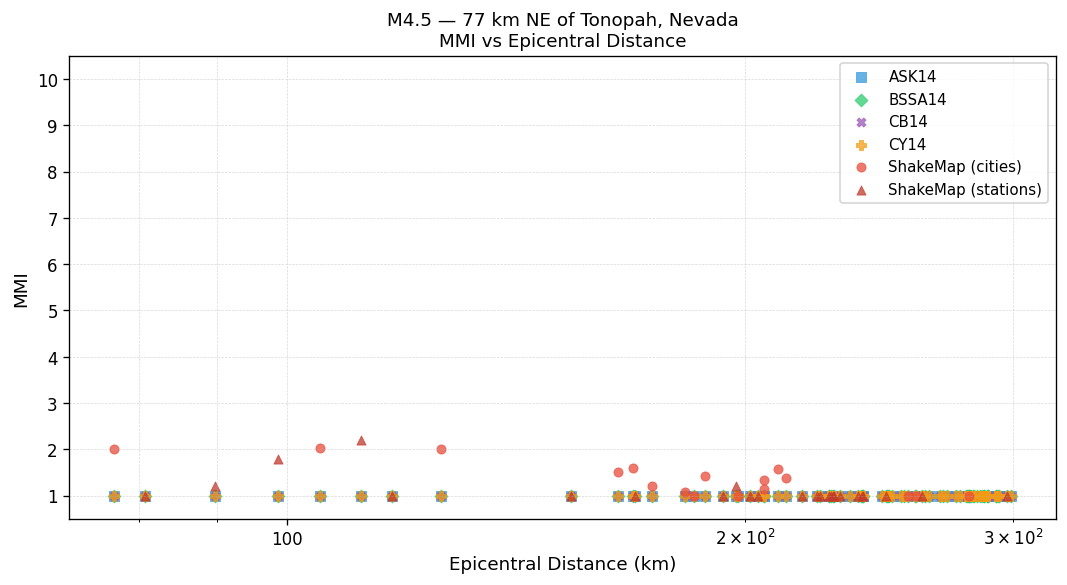

MMI vs Distance — Est. Vs30
GMPEs use the Est. Vs30 values shown in the table above. ShakeMap values are independent of Vs30.

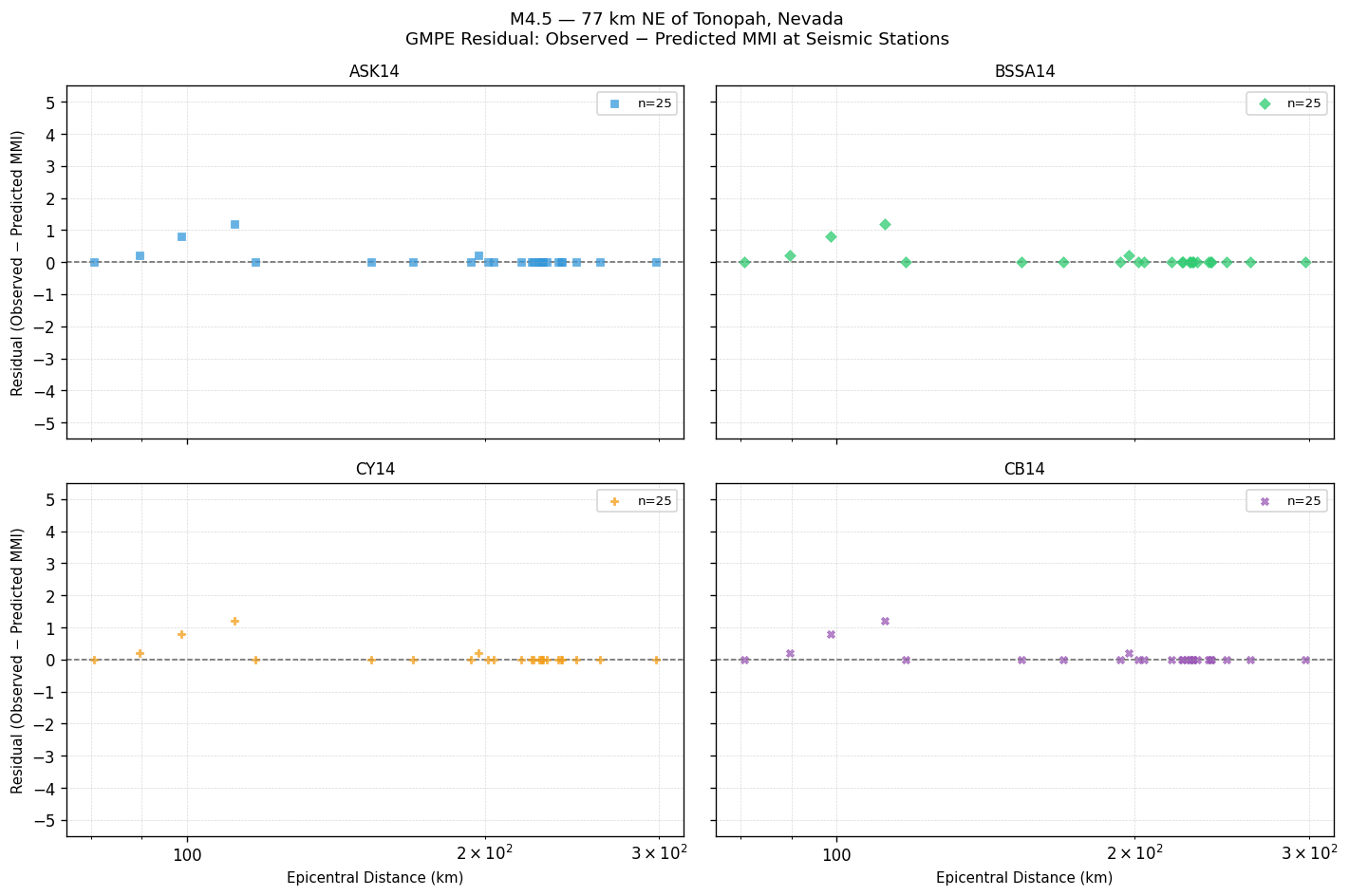

GMPE Residual — Observed − Predicted MMI
Signed residual at each seismic station. Positive values mean the GMPE underestimated shaking; negative values mean it overestimated. The dashed line at zero indicates perfect agreement.

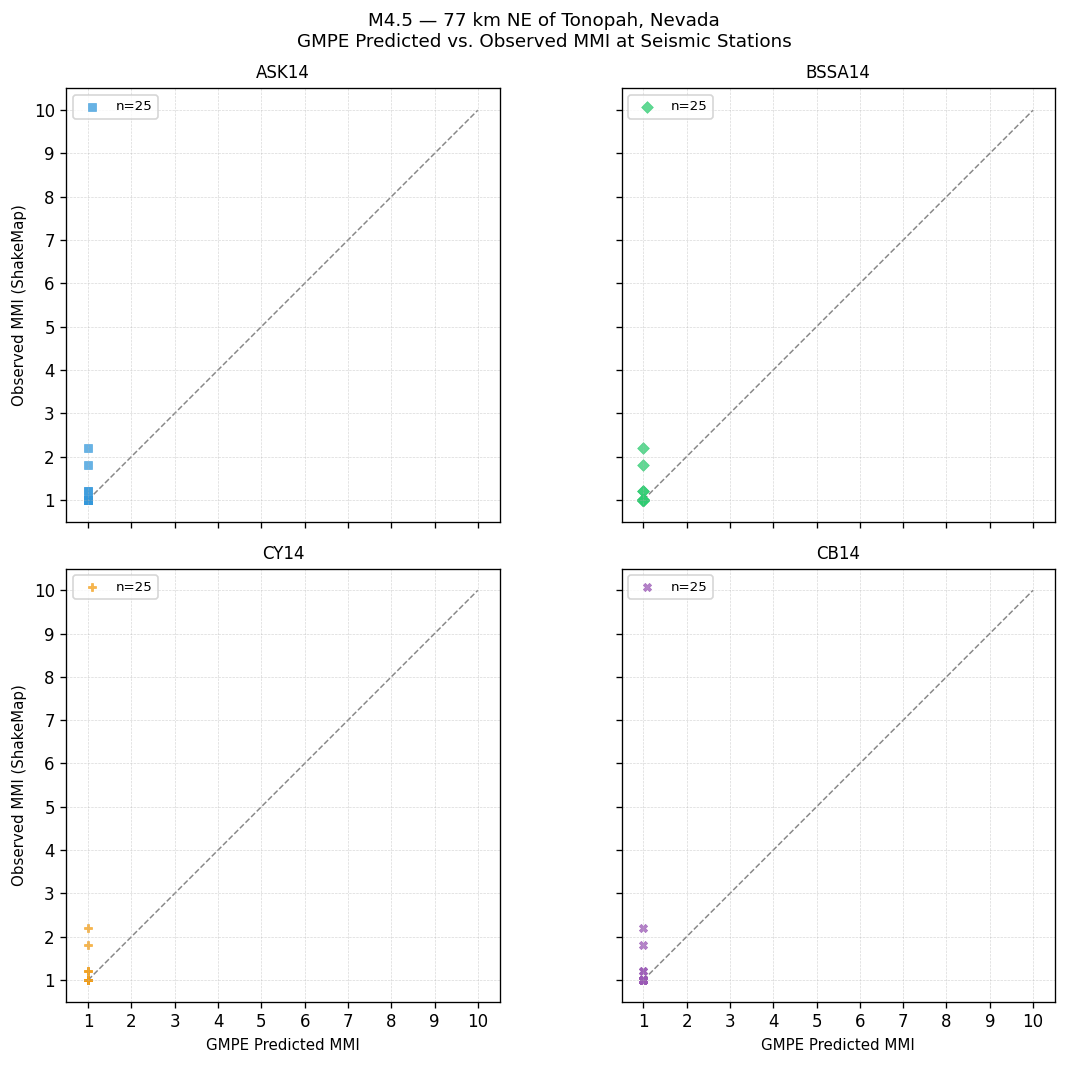

GMPE Predicted vs. Observed MMI at Seismic Stations
Each point is one seismic station. Points on the dashed 1:1 line indicate perfect agreement; above the line = GMPE underestimated shaking; below = overestimated.
GMPE Performance — Station Observations
Statistics computed by comparing each GMPE's predicted MMI against ShakeMap observed MMI at seismic stations. Bias = mean(observed − predicted). Lower RMSE indicates better overall agreement with instrumental measurements.
| GMPE | Bias | Sigma | RMSE |
|---|---|---|---|
| ASK14 | +0.14 | 0.35 | 0.37 |
| BSSA14 | +0.14 | 0.35 | 0.37 |
| CY14 | +0.14 | 0.35 | 0.37 |
| CB14 | +0.14 | 0.35 | 0.37 |
Peak Ground Motion — Seismic Station Observations
Recorded PGA and PGV at seismic stations, sorted by highest PGA. Top 25 stations shown. MMI (PGA) and MMI (PGV) are independent conversions via Worden et al. (2012) GMICE.
| Station | PGA (g) | MMI (PGA) | PGV (cm/s) | MMI (PGV) |
|---|---|---|---|---|
| Hell's Gate, California w84 (SN.HEL) | 0.0020 | Not felt(I) | 0.112 | Weak(II) |
| Black Rock Springs, NV, USA (NN.BRS2) | 0.0014 | Not felt(I) | 0.045 | Not felt(I) |
| Rachel, NV, USA (NN.S11A) | 0.0013 | Not felt(I) | 0.077 | Weak(II) |
| Outlaw Springs Mine, Nye County, NV, USA (NN.OUT1) | 0.0009 | Not felt(I) | 0.024 | Not felt(I) |
| Highway Maintenance Yard (NP.2021) | 0.0008 | Not felt(I) | 0.031 | Not felt(I) |
| Gold Mountain, NV, USA (NN.GMN) | 0.0005 | Not felt(I) | 0.027 | Not felt(I) |
| Warrior Mine, Nye County, NV, USA (NN.WAR3) | 0.0005 | Not felt(I) | 0.019 | Not felt(I) |
| Troy Canyon, Currant, NV, USA (NN.R11B) | 0.0005 | Not felt(I) | 0.010 | Not felt(I) |
| Chalk Mountain, Churchill County, NV, USA (NN.CMK6) | 0.0005 | Not felt(I) | 0.020 | Not felt(I) |
| Fire Station (NP.1679) | 0.0005 | Not felt(I) | 0.020 | Not felt(I) |
| Kaiserville, Nevada w84gm (NN.KVN) | 0.0004 | Not felt(I) | 0.017 | Not felt(I) |
| Furnace Creek (CI.FUR) | 0.0004 | Not felt(I) | 0.024 | Not felt(I) |
| UCLA Research Station (NP.1589) | 0.0003 | Not felt(I) | 0.020 | Not felt(I) |
| TV Hill 1, Hawthorne, NV (NN.TVH1) | 0.0003 | Not felt(I) | 0.024 | Not felt(I) |
| Grapevine Ranger Station (CI.GRA) | 0.0003 | Not felt(I) | 0.017 | Not felt(I) |
| Doe Ridge #3 (NC.MDR) | 0.0003 | Not felt(I) | 0.010 | Not felt(I) |
| Last Chance Range, CA. (GPS 01/04/2001) w84 (NN.LCH) | 0.0003 | Not felt(I) | 0.012 | Not felt(I) |
| Tinemaha (CI.TIN) | 0.0002 | Not felt(I) | 0.016 | Not felt(I) |
| Rogers Peak (CI.RPK) | 0.0002 | Not felt(I) | 0.011 | Not felt(I) |
| Topopah Spring, Nevada, USA (US.TPNV) | 0.0002 | Not felt(I) | 0.014 | Not felt(I) |
| Owens Valley Radio Observatory, Big Pine, CA (BK.OVRO) | 0.0002 | Not felt(I) | 0.014 | Not felt(I) |
| Five Bridges (NC.MFBB) | 0.0002 | Not felt(I) | 0.015 | Not felt(I) |
| Bald Mountain (NC.MBM) | 0.0002 | Not felt(I) | 0.018 | Not felt(I) |
| Casa Benchmark (NC.MCB) | 0.0002 | Not felt(I) | 0.013 | Not felt(I) |
| East Mammoth (NC.MEM) | 0.0002 | Not felt(I) | 0.011 | Not felt(I) |
